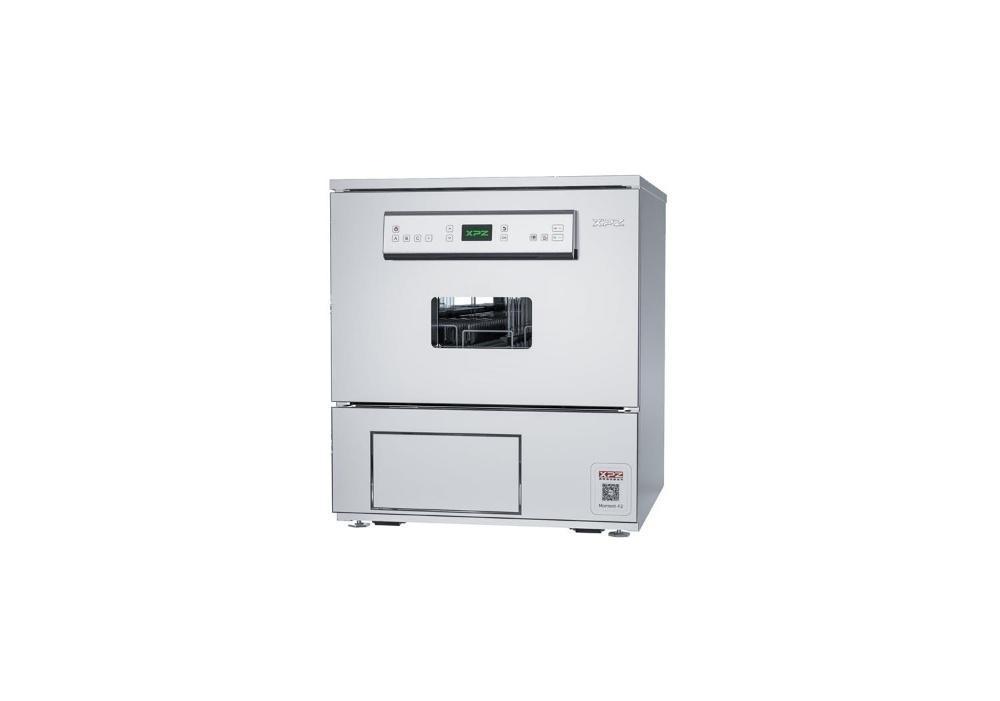

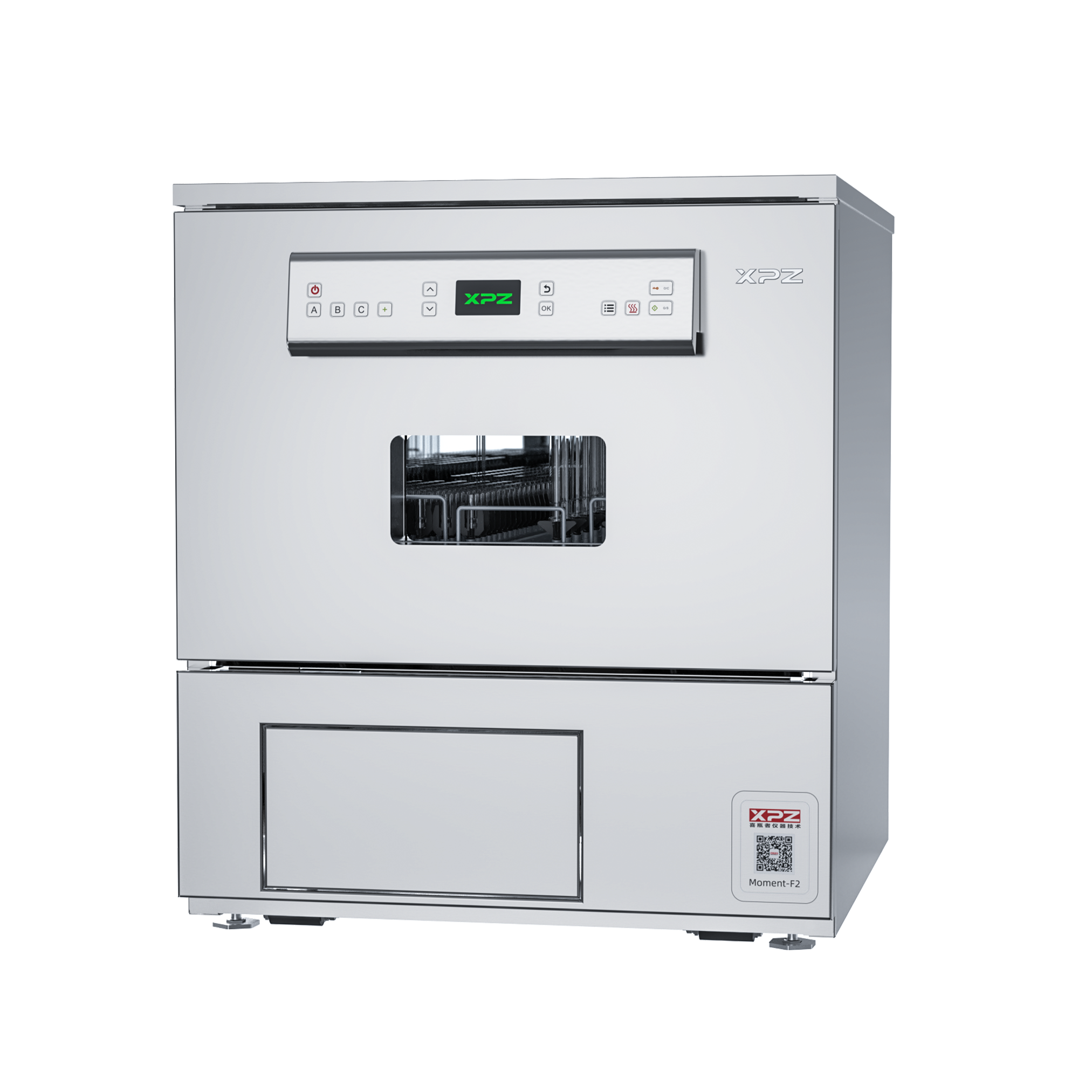

The Moment-2/F2 fully automatic glassware washer for laboratories can be installed independently on the laboratory bench. It can be connected to both tap water and pure water sources. The normal cleaning process involves first using heated tap water and detergent for the main wash, and then using pure water to rinse the washed items. It will provide you with a convenient and efficient cleaning effect. When you have the requirement for drying the cleaning vessels, please choose the Moment-F2.
Used for washing conventional glasswares in the laboratory, suitable for washing laboratory glass, ceramic, metal, plastic and other materials (such as volumetric flasks, sample injection vials, triangular flasks, colorimetric tubes, test tubes, petri dishes, heart-shaped bottles, beakers, etc.).
Structure:
304shell & 316L chamber
Control system:
The control system has 38 standard programs and 100 custom setting programs.
Installation requirements:
Power Supply: 220-230V single-phase electricity at 50Hz or 380-400V three-phase five-wire.
Water supply: Municipal tap water and laboratory pure water for rinsing
Power: 4KW / 9KW
Four-stage filtration system:
The coarse filtration at the inlet prevents particulate matter in the water from entering the chamber. The dual sewage circulation filtration helps prevent the re-circulation of particulate matter and debris. The reverse-flow filtration of the circulation pump protects the component lifespan.
Circulation system:
Circulation speed:320L/min, equipped with a circulation speed detection system and an overheat protection device.
Drying system:
Efficient HEPA filter and compressed air drying system can effectively dry the inner and outer surfaces of glassware. The drying system can be started with one click;
The drying temperature and the drying time can be adjusted. The drying model can be purchased as an optional upgrade Moment-F2
Parameter:
Series
Item
Moment-2
Moment-F2
Moment
Outside dimension
W612*D750*H685mm
+feet10-24mm adjustable
W612*D750*H685mm
+feet10-24mm adjustable
Inner capacity
126L(Built-in lighting control)
126L(Built-in lighting control)
Washing lays
1-2
1-2
Circulation pump flow rate
320L/min
320L/min
Heating power
4kw/9kw
4kw/9kw
Power
220V/380V
220V/380V
Drying methods
Ecodry
Hot air drying
Installation
Benchtop
Benchtop
Door opening
Front-opening
Front-opening
Description
Series
Item
Moment-2
Moment-F2
Moment
Operation pannel
Microcomputer intelligent control, featuring OLED display, waterproof version, stainless steel metal buttons, and equipped with 3 quick cleaning programs. Supports Chinese/Russian/English languages.
Microcomputer intelligent control, featuring OLED display, waterproof version, stainless steel metal buttons, and equipped with 3 quick cleaning programs. Supports Chinese/Russian/English languages.
Washing procedures
35 built-in cleaning programs, and 100 customizable cleaning programs.
35 built-in cleaning programs, and 100 customizable cleaning programs.
Operating authorization
Multi-level operation permission management
Multi-level operation permission management
Door control
Automatic sensor door, with standard viewing window
Automatic sensor door, with standard viewing window
Baskets

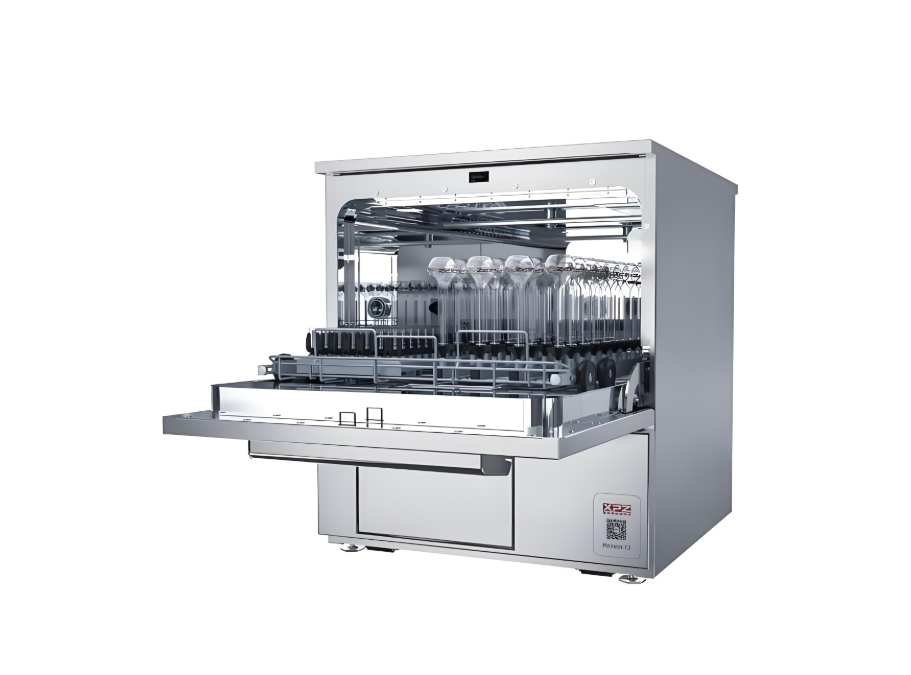

Modular basket frame, each layer can accommodate any two modules and conbine freely.
Modular basket frame, each layer can accommodate any two modules and conbine freely.
Monitoring system
Equipped with conductivity monitoring function (optional); Printing function (optional); Large-capacity data storage function
Equipped with conductivity monitoring function (optional); Printing function (optional); Large-capacity data storage function
Reservation function
Appointment washing and delayed shutdown function
Appointment washing and delayed shutdown function
Spray arm system
It can adjust the speed according to the types of glasswares , and conduct real-time monitoring to ensure that the speed remains within the set range.
It can adjust the speed according to the types of glasswares , and conduct real-time monitoring to ensure that the speed remains within the set range.
The oil-resistant models and basket frame accessories are specifically designed for the petrochemical, power, cosmetics, food and other monitoring fields. They are capable of completing complex and challenging cleaning tasks. For detailed parameters, please consult our sales representatives.
Welcome to choose Xipingzhe! We will provide you with comprehensive technical support and excellent after-sales service!
